PRO 800 D

PRO 800 D

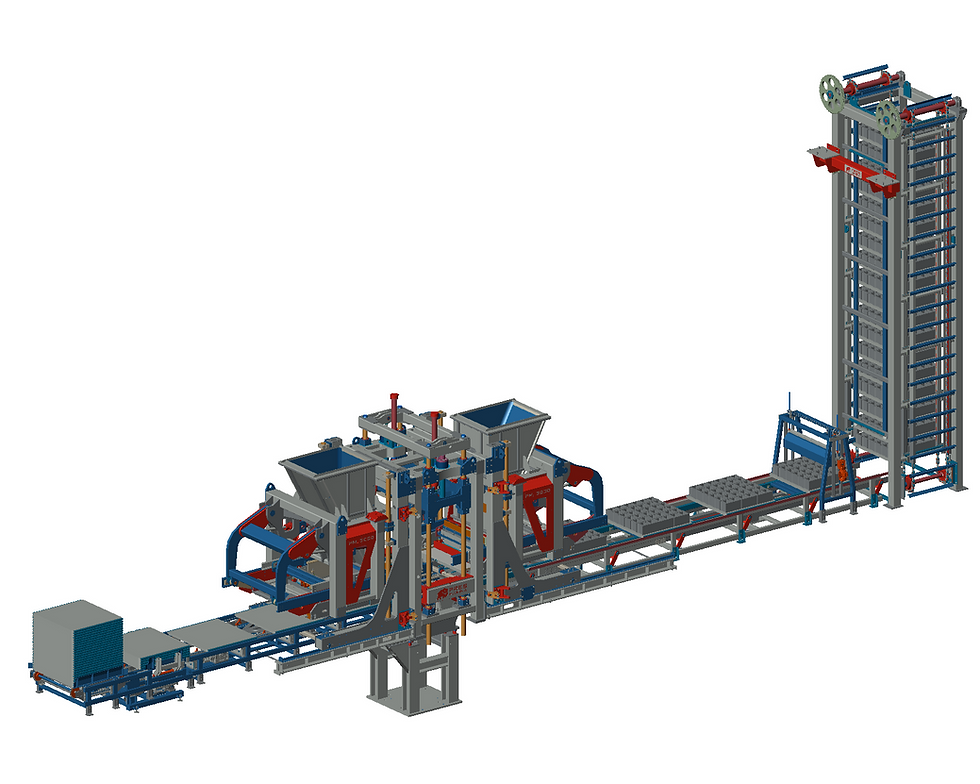

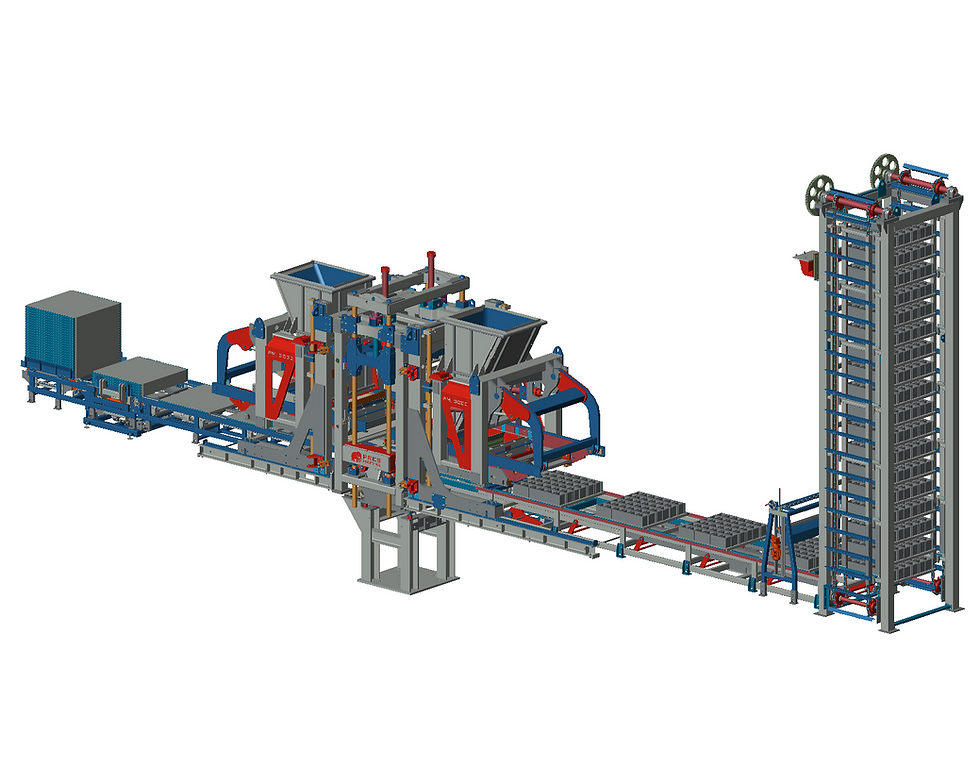

The PRO 800 D Version is a stationary semi-automatic concrete block-making machine. It is a double bunker model for course concrete and fine (surface by paver) concrete material. Manufactured with compact and robust mechanical, hydraulic, and electrical components. It includes the automatic board handling system where operatör is not controlling board feeding anymore. The PRO 800 D version has a short vibration time and can manufacture all types of hollow blocks, solid blocks, paver, kerbstone, t, or slab blocks by changing the mold type.

  • Standart Equipments

    • Concrete block and paver machine PRO 800 D / Double Bunker

    • Semi Automatic System

    • Semi-Automated Hydraulic Valve ( 5 stick )

    • Jip Crane (For mold changing only) (1500 kg )

    • Hopper capacity 2*1300 dm3

    • Bottom Vibration     4*5 kw @ 2920 rev/min GAMAK / brand

    • Top Vibration           2*0,5 kw @ 3000 rev/min KEMP / brand

    • Buttom Vibration Force:    min. 60 KN

    • Hydraulic oil tank (300 lt)

    • Hydraulic Pressure 80-250 Bars

    • Hydraulic Motor       15 kw @ 2920 rev/min GAMAK / brand

    • Hydraulic oil         0°C / 20°C  N° 46       30°C / 50°C  N° 68

    • Weight of Block Machine:   9.300 Kgs

    • Dimensions: Length = 5260 mm / Width = 1970 mm / Height = 3110 mm

    • Mixer (750 dm3)

    • Aggregate conveyor band ( 8 m )

    • Moving mortar hauling band (8 m)

    • Aggregate bunker

    • Electric panel with speed control unit
